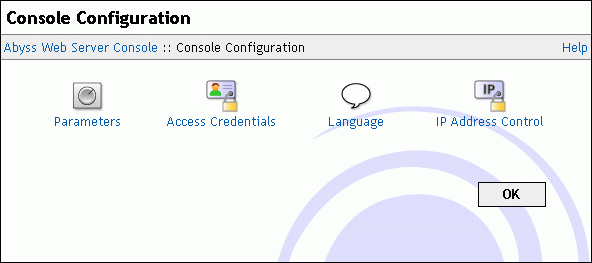

To change the console parameters, open the console and select Console Configuration.

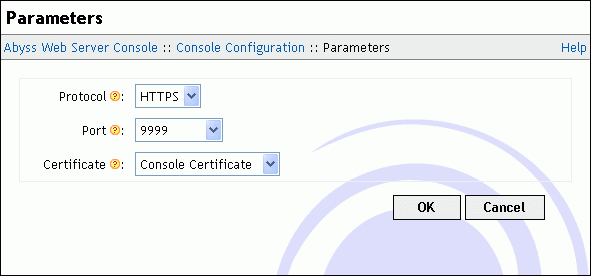

In the Console Configuration dialog, select Parameters. In the displayed dialog, Protocol can be set to HTTP or HTTPS. If HTTPS is selected, the console will be accessible through secure connections using SSL/TLS and you will have to set Certificate to the name of the certificate you want to use for console accesses. A certificate that will be used for the console can be a self-signed certificate and it is recommended to set its Host Name (Common Name) to * to have it match with any host name you may use when accessing the console.
You can also choose a new port number that will be used for the console in the Port field. Press OK to validate the changes.
If the port number is invalid or is already used by another application on your computer, the console displays an error and asks you to enter another value.
Bind to IP Address: The IP address of the network interface that the console should listen on. When empty or set to *, the host listens for incoming connections on all available network interface (which the default and the recommended setting.)
SSL/TLS Parameters: Detailed parameters of the SSL/TLS secure layer are accessible by pressing Edit.... In the displayed disalog, it is possible to set the SSL/TLS profile. It is highly recommended to let it set to its default and recommended value. If you set it Custom, it becomes possible to select the accepted protocols and configure the Ciphers parameter to select the ciphers that the server can accept to use when negotiating with a browser establishing a HTTPS connection to the console. When set to Strong, no weak cipher (any cipher with a key length strictly less than 128 bits) will be used. But this can restrict access from some old browsers which do not support modern and strong ciphers. For custom ciphers specification, set this parameter to Custom Specification and fill the displayed text field with a string conforming to the OpenSSL Ciphers List Format.
Because the console access needs authorization, it is important to keep your console access credentials secret. It is also highly recommended not to choose them similar to your system login or password or any valuable credentials. Indeed, as the console relies on the browser to perform the authorization and as browsers use a relatively weak authorization scheme, console access information could be intercepted and deciphered by malicious persons on the network.
To change the console access credentials:
Go to the Console Configuration dialog and select Access Credentials.
Enter an administrator login.
Enter a password. It is recommended to choose a password containing characters, digits, and special symbols. This password should not be a dictionary word.
Reenter the same password.
Once the change is made, the browser asks you to enter the new login and password.
To change the language used in the console:
Go to the Console Configuration dialog and select Language.
Select a language by pressing one of displayed buttons.
To add support for an additional language, download the corresponding language file from http://www.aprelium.com/abyssws/languages and save it inside <Abyss Web Server directory>/lang. You may need to restart the server to have it take into account the new language file.

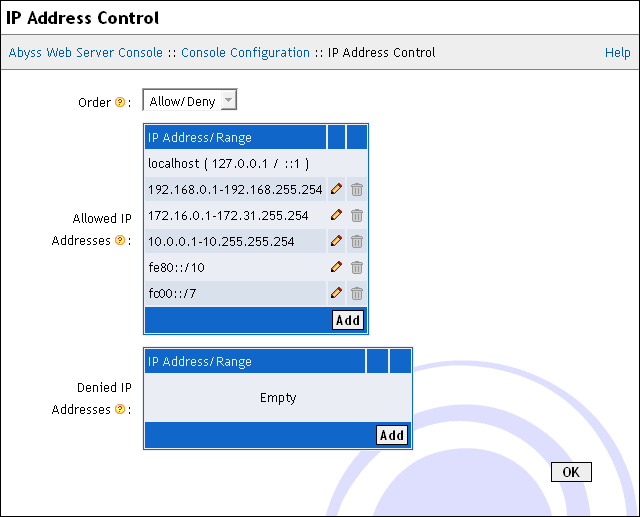

To restrict or grant access to the console to an IP address or an IP address range, go to the Console Configuration dialog and select IP Address Control.
The displayed dialog contains the following items:
Order: The order that the server follows to check if access is granted to a client based on its IP address. If it is set to Allow/Deny, access is denied by default and is allowed only if the IP address is in the Allow for list and is not in the Deny for list. If it is set to Deny/Allow, access is allowed by default and is denied only if the IP address is in the Deny for list and is not in the Allow for list.
Allowed IP Addresses: The list of IP addresses and IP address ranges for which access is allowed. Refer to "IP Addresses and Ranges Format" appendix for more information about the IP addresses and ranges.
Denied IP Addresses: The list of IP addresses and IP address ranges for which access is denied. Refer to "IP Addresses and Ranges Format" appendix for more information about the IP addresses and ranges.
Note: The access to the console is always allowed for the computer on which Abyss Web Server runs (which IPv4 address is 127.0.0.1 and IPv6 address is ::1.)
Note: If Denied IP Addresses list is empty and the order is Deny/Allow, access is granted to any IP address.
